DAR800™ Absorbance Microplate Reader

As a stand-alone microplate reader, the DAx800 is designed for applications within the clinical, biotechnology and research areas. The onboard data reduction surpasses many computer software packages with its extensive curve-fitting, cutoff calculation, data transformation and validation capabilities. The DAx800 interfaces with Diagnostic Automation Data Analysis Software for even more flexibility in data analysis and reporting.
Detection Method: Absorbance
Read method: Endpoint Kinetic and well area scanning via computer control.
Microplate types: 6-, 12-, 24-, 48-, 96-well microplates 384- and 60/72/96-well Terasaki plates (NB Option)* different model.

Light Source: Tungsten Halogen
Wavelenght selection: Filters
Wavelenght range: 400 to 750nm 340 to 750nm (UV option)
Dynamic Range: 0 to 3.0 OD
Resolution: 0.001 OD
Filters Supplied: 4 filters (5 with UV option)
Reading Speed: 30 secs single wavelength
OD Accuracy: <1% at 2.0 OD typical
OD Repeatability: <0.5% at 2.0 OD typical
OD Linearity: <1% at 2.0 OD typical, <3% at 3.0 OD typical
NRTL and CE Certified.

DAW50™ Microplate Washer

DAI recognized leadership in full-plate microplate washers extends to the DAX50 Auto Strip Washer. The DX50 compact footprint contains a powerhouse of washing capabilities unsurpassed in its class. The washer’s excellent dispense accuracy and evacuation efficiency supports 96- and 384-well strip or plate washing. Comprehensive and easy-to-use onboard software provides the utmost flexibility for a variety of applications.

DAI recognized leadership in full-plate microplate washers extends to the DAX50 Auto Strip Washer. The DX50 compact footprint contains a powerhouse of washing capabilities unsurpassed in its class. The washer’s excellent dispense accuracy and evacuation efficiency supports 96- and 384-well strip or plate washing. Comprehensive and easy-to-use onboard software provides the utmost flexibility for a variety of applications.
Microplate Types:
All flat-bottom 96-well plates, 384-well flat-bottom plates 1 x 8 flat-bottom strips (16-chan-nel)
All 96-well plates, 1 x 8 strips (8-channel)
All 96-well plates, 1 x 12 strips (12-channel
Mainfold Type:
16-channel patented Dual-Action, with separate dispense/aspiration (16-well)
8-channel aspiration/dispense (8-channel)
12-channel aspiration/dispense (12-channel)
Washing Speed:
3 asp./disp. Cycles: <250 second (100 μl/well, 384 wells)
>105 second (300 μl/well, 96 wells)
Volume Range: 25 to 3000 μl
Soak Time: 1 to 600 seconds
Power: 100 to 240 VAC, 50 to 60 H

Microplate Luminometer

The MPL1 Microplate Luminometer is an affordable but high quality instrument with basic functionality. It incorporates all important functions necessary to perform glow luminescence measurements and it is suitable for all applications which require a very high dynamic range, but not extremely high sensitivity. Due to the concentration on the few critical functionalities, the instrument is available for a very attractive price. CE certified.

Stat Fax® 2100 Microplate Reader

The Stat Fax 2100 Microplate Reader is fully automatic. , Bichromatic optics. Standard model includes four filters; six filters are available for a nominal charge. On board data reduction calculations include regressions, curve fitting and cutoff absorbance calculations with step-by-step user prompting. Large, non-volatile memory stores at least 50 user tests. Includes parallel and serial outputs. Operates with or without a computer. A bi-directional accessory is available for linking to IBM compatible computer. NRTL and CE certified.

Stat Fax® 2200 Incubator - Shaker

The Stat Fax 2600 Microplate Washer is fully automatic. Washes flat, round, V-bottom plates and strips. No user adjustments required. Automatic calibration, alignment, and last row detection. Large, non-volatile memory stores at least 50 user wash protocols, precision operation with constant monitoring of vacuum and pressure. Pump cycles only when necessary for quiet operation. Programmable automatic rinse cycle. Ready to run: bottles, aerosol shield, 8-way manifold included. 12 and 16 position wash heads available as accessories. NRTL and CE certified.

Stat Fax® 2600 Automated Plate Washer

Fully automatic,Washes flat, round, V-bottom plates and strips. No user djustments required. Automatic calibration, alignment, and last row detection. , Large, non-volatile memory stores at least 50 user wash protocols, Precision operation with constant monitoring of vacuum and pressure. Pump cycles only when necessary for quiet operation. Programmable automatic rinse cycle. -Ready to run: bottles, aerosol shield, 8-way manifold included. -12 and 16 position wash heads available as accessories. -NRTL and CE certified

Stat Fax� 4700 Microstrip Reader

The Stat Fax 4700 Microstrip Reader, PHOTOMETRIC
Linear Measurement Range: 0.0 to 3.0 Absorbance units (A).
Photometric Accuracy: 0.0 � 1.0A +/- (1% of the reading + 0.010A).
>1.0A +/- (2% of the reading + 0.010A).
Stability: Drift of no more than 0.005A in 8 hours/bichromatic.
Light Source: Tungsten-Xenon lamp with lamp saver feature.
Standard Wavelengths: Standard: 405, 450, 492, and 630nm.
6-VIS: 405, 450, 492, 545, 600, and 630nm.
6-UV: 340, 405, 450, 492, 545, and 630nm.
Alternate filters available from 340 to 880nm.
Filter Type: IAD hardcoat interference, 10nm half bandpass.
Vessel: Single or break-apart strip up to 12 wells long.
3-strip loading capacity.

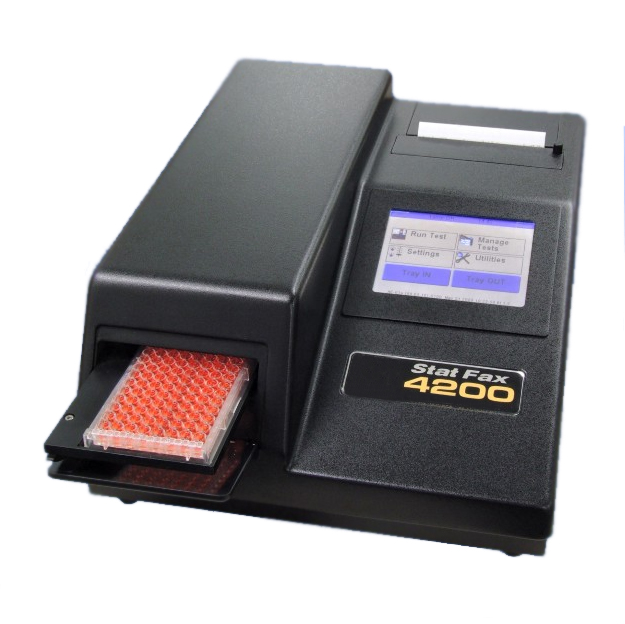

Stat Fax� 4200 Microplate Reader

The Stat Fax 4200 is a compact, standalone 8- channel microplate reader. It�s streamlined designed offers touch screen interface, rapid reading, superb optics, onboard curve-fitting software, and built-in printer to meet the requirements of modern laboratories.

Linear Measurement Range: 0.0 to 4.0 Absorbance units (A).
Photometric Accuracy: +/- 1%.
Stability: Drift of more than 0.005 A in 8 hours.
Light Source: Remove halogen lamp source with lamp
saver feature.
Wavelengths: Standard: 405,450,492 and 630 nm.
Filter options from 405nm to 700nm.
Filter Type: IAD hardcoat interference, 10nm half
bandpass .
Vessel: Standard 96-well microtiter plates, or Strip trays.

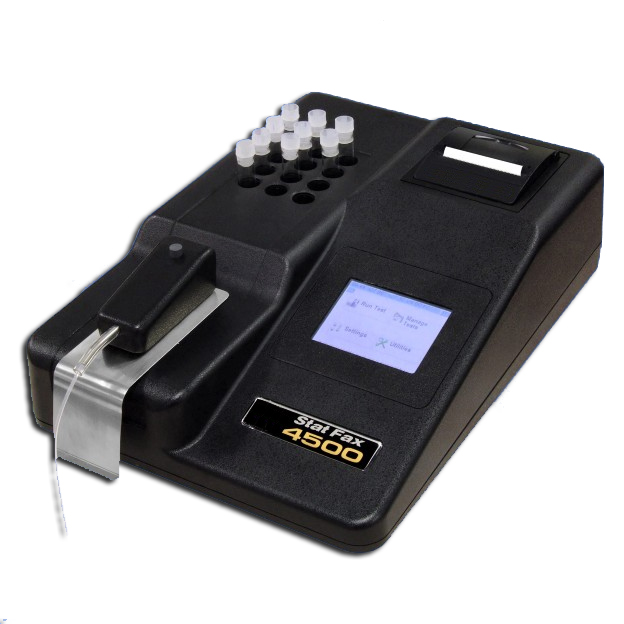

The Stat Fax 4500 is a compact, standalone chemistry analyzer. Its streamlined designed offers touch screen interface, rapid reading, superb optics, onboard curve-fitting software and built-in printer to meet the requirements of modern laboratories. CE Certified

Linear Measurement Range: Tube or Cuvette -0.0 to 3.0
Absorbance units (A).
Photometric Accuracy: +/- (1% of the reading + 0.005A).
Stability: Drift of no more than 0.005A in 8 hours/bichromatic.
Light Source: Tungsten lamp with lamp saver feature.
Standard Wavelengths: 340,405,505,545,580 and 630 nm.
(alternate filters available from 340 to 700nm.
Filter Type: IAD hardcoat interference, 10nm half bandpass
Tube Size: 12mn round tube is standard.
Read cell accommodates square cuvettes.
Minimum sample volume: 1 mL for 12mm round tube.
250 �L for flowcell.

Stat Fax® 3300 Chemistry Analyzer shown with 3600 Incubation Block and optional keyboard

Flip-up display screen.
Large 240 x 128 pixel graphical display.
Plug in standard external keyboard for easier data entry (sold separately).
Use 40-column on-board thermal printer, external printer, or PC.
Create a work list, run tests, print patient reports. Stores patient data.
Shows kinetic plots in real time.
Stores control values and creates Levey-Jennings plots for QC.
Optical system is temperature controlled to 37C.
Bichromatic w/ 6 filters and spaces for 2 optional filters (340-700nm).
Adapts to use 12 mm round tubes, 1 cm square cuvettes, or built in flow cell.
Vacuum system speeds sampling and reduces carryover.
Calibration traceable to NIST standard.
Stat Fax® readers use IAD filters.
3600 Incubation Block

Optional Accessory for the Stat Fax® 3300
Incubates 18 Tubes at 37°C.
LED at front indicates heating function.
Temperature displays on 3300 screen.

LumiStat Microstrip Luminometer

Detection Mode, Glow luminescence
Vessel, Single, double, or break apart strips, up to 12 wells,36 well loading capacity
Plate Format: Common strip carrier can hold three 12- well strips or three 8-well strips
Cross talk Less than 2.5 x 10-4
Detector Photomultiplier (PMT) Spectral
Response Range: 300-650 nm
Peak Wavelength: 400 nm
Sensitivity/Detection limit: HRP1x10-18, ALP1x10-21
Linear Dynamic: -21ALP 1x10, other tests pending
